GARRETT Walk-Through Metal Detector, PD 6500iā¢ , 30", IP 55, Gray- 1168424
GarrettĀ® Walk-Through Detector Safety GarrettĀ® walk-through metal detectors meet U.S. and international regulatory requirements for electromagnetic safety. Extensive research has found no information that would indicate GarrettĀ® products have adverse effects on pregnancy, medical devices (such as pacemakers) or magnetic recording media. However, directives by physicians and medical device manufacturers regarding metal detectors should be followed.
- Standard Programs More than 20 application programs included
- Distinct Sensitivity Levels 200
- Meets IP55 Standards For moisture, foreign matter protection

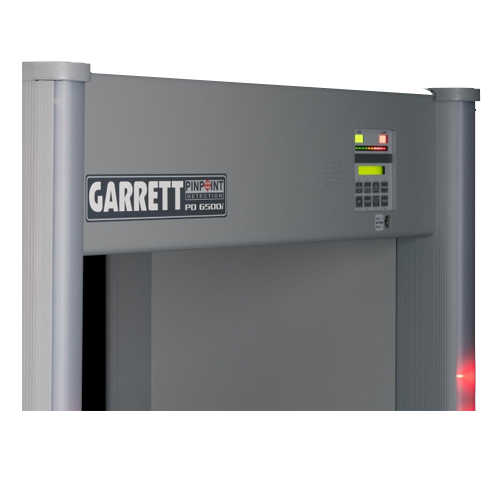

- Overhead Control Unit All electronics-Liquid Crystal Display (LCD), alarm light, Light Emitting Diode (LED) bar graph, control touch pads-integrated to eliminate wire exposure.
- Tamper-Proof Settings Three access levels of security clearance
- Self Diagnostic Program Complete and automatic
- Zone Sensitivity Boost Adjustable in six areas
- Multi-Brand Compatibility Can be added to existing checkpoints without having to replace other brand units.
- Includes multiple channels and 2,300 selectable operating frequencies.
- Optimum Performance More than 20 standard program settings scientifically engineered to address the needs of airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention, and other applications.
- Pacing Lights Universal āwaitā and āproceedā symbols at the detector entrance for traffic controls.
- Advanced Networking (Optional) Manage walkthroughs individually or as groups and perform statistical analysis via network with Control Module Analyzer (CMA) interface module. Supervisors can remotely access controls, visual alarms and statistics.
- Directional Counter Four settings for counting patrons: forward only, reverse only, subtract in reverse, and bidirectional.
- Advanced Broadband Technology Analyzes targets across a broad range of frequencies for greater accuracy. Provides superior ferrous and nonferrous detection. Improved discrimination means fewer false alarms and higher throughput.
- More Accurate Pinpointing With more than four times the detection coils of competitive models, the PD 6500i provides uniform detection and precise pinpointing. Independent zone indicator lights on both side panels identify not only height but also left, center and right locations for one or more objects passing through the archway.
- Dual-Sided Detection This unique bilateral technology has transmitters and receivers in each side panel to allow scanning from both sides, resulting in uniform detection throughout the archway. It also provides superior noise cancellation resulting in easier setup (i.e. no need to rotate the unit to avoid interference from nearby equipment such as other metal detectors or x-ray machines).
- Superior Versatility Menu based settings for feature selection such as alarm indication, count method, and language without the use of a computer. Field programmable to allow system upgrades. Multiple units can be installed as close as 2 inches.
- International Security Standards Transportation Security Administration (TSA) (U.S. Airports)
- European Civil Aviation Conference (ECAC) (European Airports)
- Technical Department of Civil Aviation (STAC) (French Airports)
- Spanish Airports and Aerial Navigation (AENA) (Spanish Airports)
- Central Japan International Airport Centrair (CJIAC) (Japanese Airports)
- Passageway Interior Width 30 in - 0.76 m
- Passageway Interior Height 80 in - 2.03 m
- Passageway Interior Depth 23 in - 0.58 m
- Overall Exterior Width 35 in - 0.90 m
- Overall Exterior Height 87 in - 2.21 m
- Overall Exterior Depth 23 in - 0.58 m
- Shipping Depth 6.25 in - 0.16 m
- Operating Temperature -4 to 149 ĀŗF / -20 to 65 ĀŗC
- Non-Condensing Operating Humidity 95 %
- Fully Automatic AC Voltage 100 to 240 V
- Fully Automatic Frequency 50 to 60 Hz
- Fully Automatic Power 45 W
Regulatory Information Meets Transportation Security Administration (TSA) requirements for U.S. airports, European Civil Aviation Conference (ECAC), Technical Department of Civil Aviation (STAC), Spanish Airports and Aerial Navigation (AENA), Central Japan International Airport Centrair (CJIAC) and Department for Transport (DFT), Meets Electrical Safety and Compatibility Requirements for European Conformity (CE), Federal Communications Commission (FCC), Canadian Standards Association (CSA), International Electrotechnical Commission (IEC), International Commission on Non-Ionizing Radiation Protection (ICNIRP) and Institute of Electrical and Electronics Engineers (IEEE).
Weatherproofing Meets Ingress Protection (IP) 55, International Electrotechnical Commission (IEC) Standard. āDegrees of Protection provided by Enclosures,ā International Electrotechnical Commission (IEC) 529, *Ingress Protection (IP) 65 optional.
Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.
Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
Optional Remote Control Desktop Remote Control with Zone Indication; personal computer with wired or wireless Control Module Analyzer (CMA); or Infrared (IR) remote Control Module Analyzer (CMA).
Optional Networking Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless Control Module Analyzer (CMA).
Alarm Indicators 33 zones: audible, visual and remote alarms.
