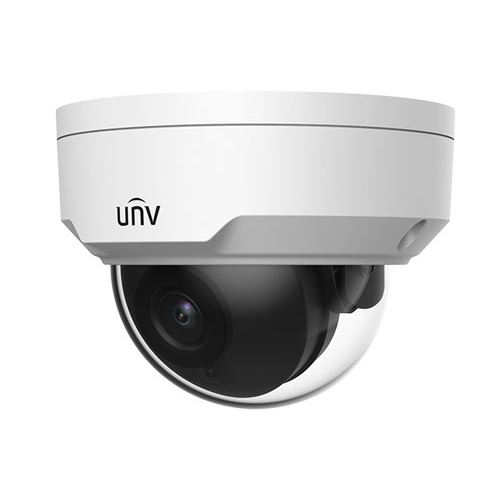

Uniview IP Camera IPC324LE-DSF28(40)K
4MP StarLight Vandal-resistant Network Fixed Dome Camera

Optics
Day/night functionality
Smart IR, up to 30m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)

Compression
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)

Network
ONVIF Conformance

Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67

Specification

Camera
Sensor:
1/3", 4.0 megapixel, progressive scan, CMOS

Lens: 4.0mm@F1.6

Angle of view (H): 79.7°

Angle of View (V): 41.6°

Angle of View (O): 98.0°

Adjustment angle:
Pan: 0° ~ 360°
Tilt: 0° ~ 68°
Rotate: 0° ~ 360°

Shutter:
Auto/Manual, 1 ~ 1/100000s

Minimum Illumination:
Colour: 0.005Lux ( F1.6, AGC ON)
0Lux with IR

Day/Night:
IR-cut filter with auto switch (ICR)

Digital noise reduction:
2D/3D DNR

S/N: >52dB

IR Range: Up to 30m (98ft) IR range

Wavelength: 850nm

IR On/Off Control: Auto/Manual

Defog: Digital Defog

WDR: 120db

Video
Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 code profile: Baseline profile, Main Profile, High Profile

Frame Rate:
Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 25fps

Video Bit Rate: 128 Kbps~16 Mbps

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Up to 4 areas

Motion Detection: Up to 4 areas

White Balance:
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal/Vertical/Horizontal/180°

Dewarping: Support

HLC: Supported

BLC: Supported

Network
Protocols:
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL

Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API

Client:
EZStation
EZView
EZLive

Storage
Edge Storage: Micro SD, up to 256 GB

Network Storage: ANR

Interface
Network: 10/100M Base-TX Ethernet

General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 3.5W

Dimensions (Ø x H): Φ109 x 81mm (Ø4.3” x 3.2”)

Net Weight: 0.49kg (1.08lb)

Material:
Shield：PC
Body：plastic
Bottom plate：metal

Working Environment:
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment:
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection: IP67
