Huawei eKitEngine S380 series Multi-Service Gateway include various models, such as those with 4 downlink GE electrical ports, 8 downlink GE electrical ports (PoE/non-PoE ports), or GE uplink ports. With features like easy installation and deployment, as well as flexible Ethernet networking, the products can be widely used for indoor coverage in SME markets such as SOHO enterprise office, economic hotels, factories, primary and secondary education, and building security.
- Powerful: 50% larger connection capacity
- Fast: 2x faster forwarding
- Stable: PoE on all ports, compatible with 100+ types of non-standard terminals
Specifications:
Model: Huawei eKitEngine S380-L4P1T
Switching capacity: 8 Gbit/s
WAN port: 1 x 10/100/1000BASE-T port
LAN port: 4 x 10/100/1000BASE-T ports
PoE Support: Yes
Chassis height: 1U
Memory: DDR4: 512 MB
Users: up to 200
Maximum input current [A]: 1.07 A
Power: With PoE: 61.65 W, Without PoE: 11.65 W
Dimensions: 9 x 28.5 x 18 cm
Weight:1.1 kg

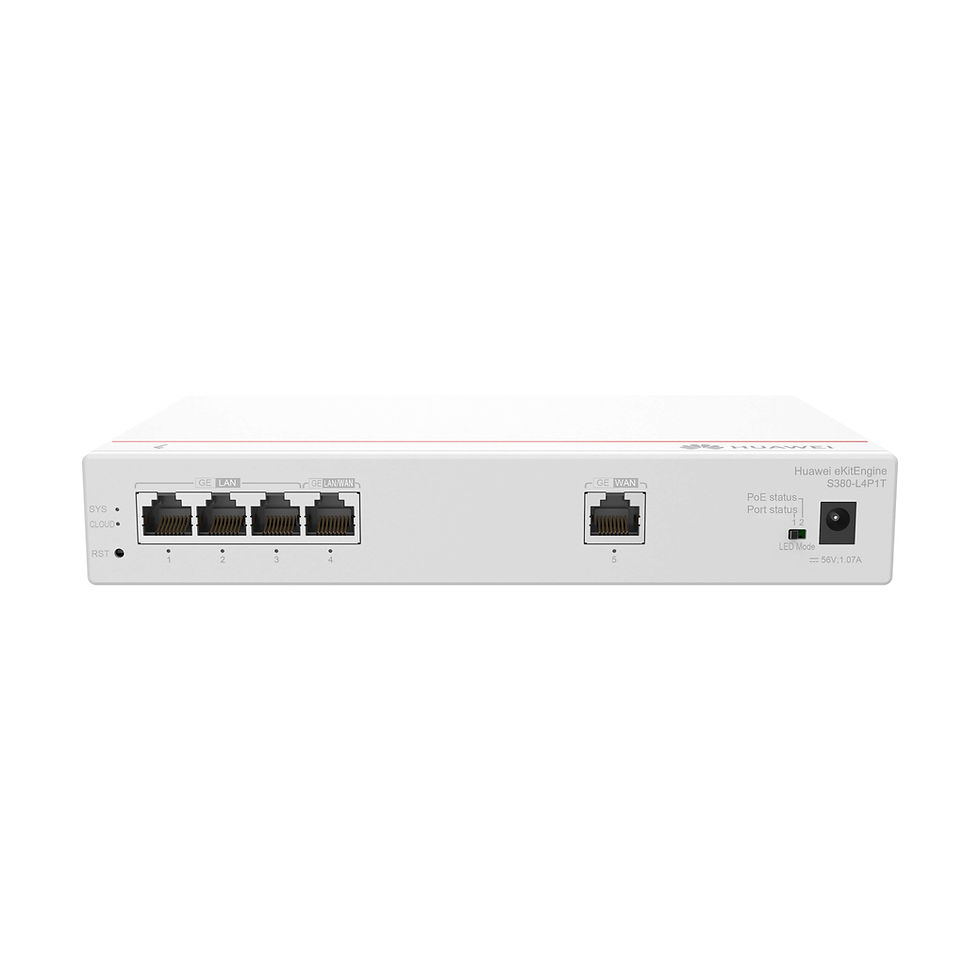

Huawei S380-L4P1T Multi Service Gateway 200 Max Users 1*GE WAN 4*GE LAN PoE 50W
