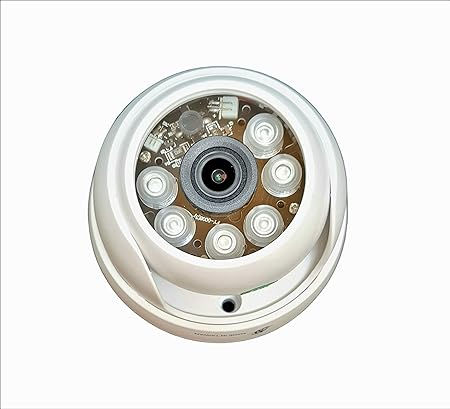

Hi Sharp HS-D003BD Security Camera

Features
High video quality on HD 1080P.
Appearance: Dome
Extremely long transmission distance.(300M)
Support CoC (UTC) to operate OSD MENU
The same connection structure as the original analogue system without cable (Coax / UTP) changing

Specification
Model: HS-4IN1-D003BD
Pick up device: 1/3” Aptina CMOS : 2.0 Mega
Solution: FH8536H + F33
Resolution: 1920(H) x 1080(V)
Video Output: AHD / CVBS (optional: TVI / CVI)
Synchronization: Internal
Scanning System: 2:1 Interlace
Lens Type: Board Lens: 2.8mm
Min. Illumination: 0.01 Lux
Electronic Shutter: Auto 1/60 (1/50) ~ 1/50,000 sec / FLK
IR Distance: 20M
Control: CoC (Control Over Coaxial)
Video Output: 1.0 Vp-p / 75 ohm composite
Weatherproof: IP66
Dimension: 74(H) x 93(Diameter)mm
Made in: Taiwan
